Robot Control Board V1

Features

1. Use AVR Chip
2. Onboard Motor driver for two motor
3. Onboard Voltage Regulator
4. Usbasp programming enable (Programming Pin)
5. Arduino IDE Compatiable Board
6. Testing Led
7. Onboard Two Testing switch
8. Battery plug
9. Line Sensor plug
10. Double Row Female Input/output port extension
11. Multiple power (5v) pins

Circuit

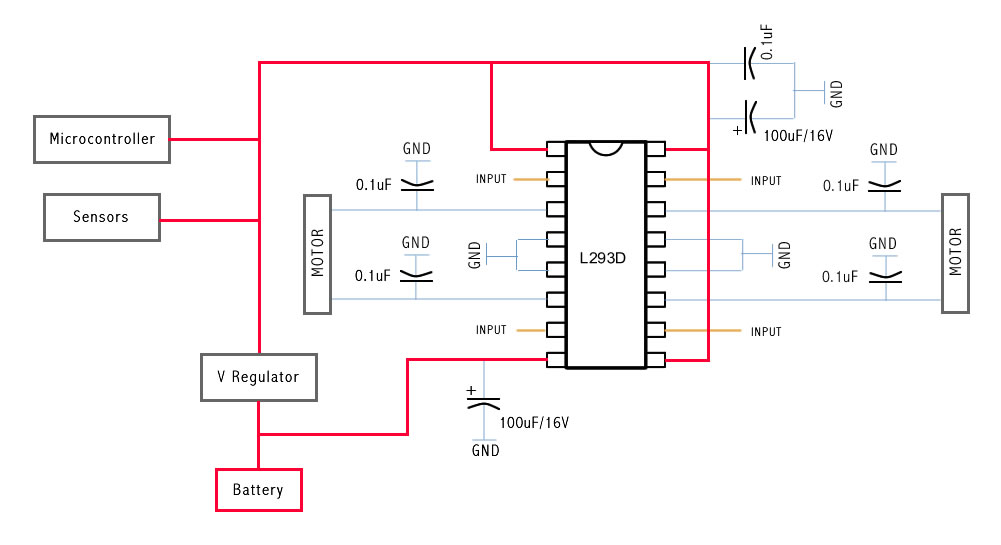

l293d motor driver

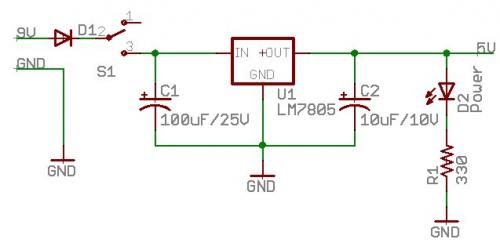

Voltage regulator

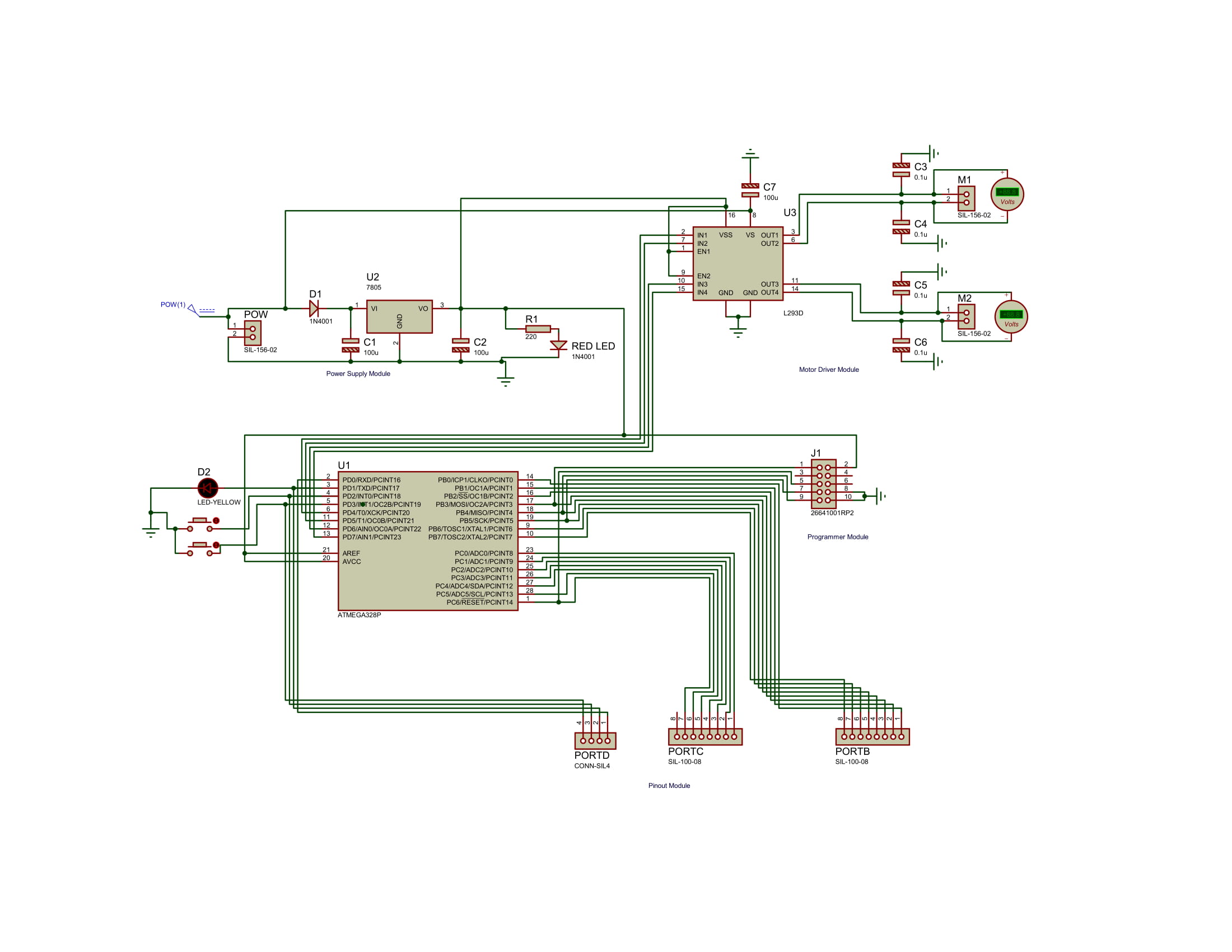

Complete Circuit

File

Proteus
